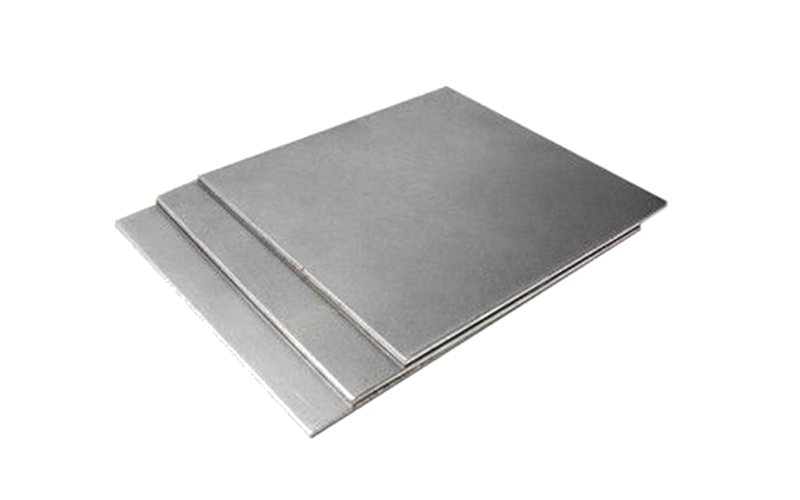

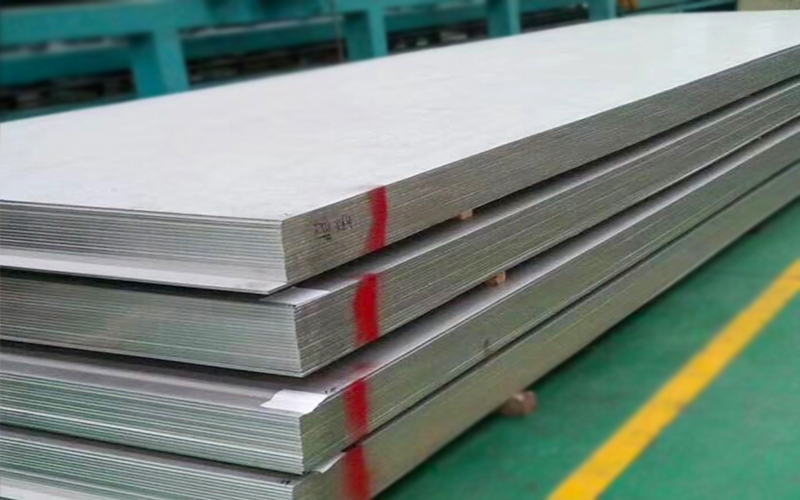

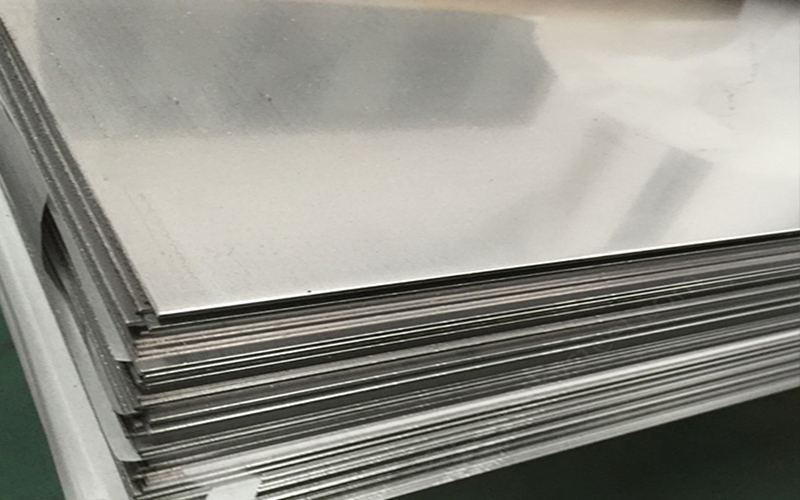

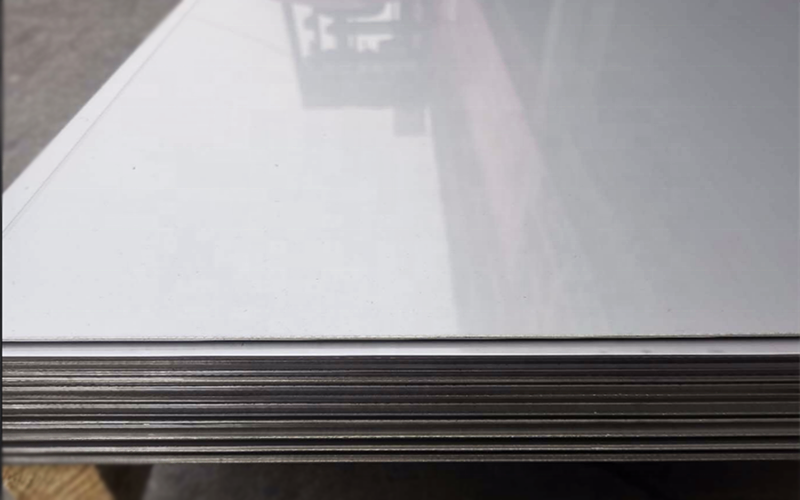

Hastelloy alloy plate
Alloy Steel Plate
Hastelloy plate is a special metal material, also known as Hastelloy alloy or Hastelloy steel plate. This alloy plate is mainly composed of nickel, chromium, molybdenum and other elements, of which the content of nickel is high, giving the alloy good corrosion resistance. Chromium can improve the oxidation resistance and corrosion resistance of the alloy, while molybdenum can enhance the high temperature strength and creep properties of the alloy. In addition, iron is also one of the basic components of the alloy.

Hastelloy plates have many excellent characteristics, such as excellent corrosion resistance, and can maintain good stability in various acid, alkali, salt and other corrosive media. At the same time, it also has the characteristics of stable high temperature performance, good mechanical properties, good welding performance and environmental protection and safety.

Due to their unique properties, Hastelloy plates are widely used in many fields, including petrochemical, aerospace, power energy and Marine engineering. In the petrochemical industry, it is often used to manufacture reactors, towers, heat exchangers and other equipment; In the aerospace field, due to its advantages of high strength, light weight and corrosion resistance, it is used to manufacture key components such as aircraft parts and rocket engines; In the power energy industry, it is used to manufacture pipelines, valves and pumps for nuclear power, thermal power, wind power and other equipment; In the field of Marine engineering, Hastelloy plates are also widely used because of their excellent corrosion resistance and mechanical properties.

At present, Hastelloy plates are mainly divided into three series, B, C and G, and have been improved many times to improve their corrosion resistance and processing properties. Among them, C-276 Hastelloy plate is one of the only several materials that can resist the corrosion of humid chlorine gas, hypochlorite and chlorine dioxide solutions, showing that it has excellent corrosion resistance to most corrosive media.

Please note that although Hastelloy plates have many advantages and a wide range of applications, they still need to be selected and used according to engineering requirements and specifications in specific applications to ensure their safety and effectiveness.
Contact Us

Product Parameter

Hastelloy plate is a special metal material, also known as Hastelloy alloy or Hastelloy steel plate. This alloy plate is mainly composed of nickel, chromium, molybdenum and other elements, of which the content of nickel is high, giving the alloy good corrosion resistance. Chromium can improve the oxidation resistance and corrosion resistance of the alloy, while molybdenum can enhance the high temperature strength and creep properties of the alloy. In addition, iron is also one of the basic components of the alloy.

Hastelloy plates have many excellent characteristics, such as excellent corrosion resistance, and can maintain good stability in various acid, alkali, salt and other corrosive media. At the same time, it also has the characteristics of stable high temperature performance, good mechanical properties, good welding performance and environmental protection and safety.

Due to their unique properties, Hastelloy plates are widely used in many fields, including petrochemical, aerospace, power energy and Marine engineering. In the petrochemical industry, it is often used to manufacture reactors, towers, heat exchangers and other equipment; In the aerospace field, due to its advantages of high strength, light weight and corrosion resistance, it is used to manufacture key components such as aircraft parts and rocket engines; In the power energy industry, it is used to manufacture pipelines, valves and pumps for nuclear power, thermal power, wind power and other equipment; In the field of Marine engineering, Hastelloy plates are also widely used because of their excellent corrosion resistance and mechanical properties.

At present, Hastelloy plates are mainly divided into three series, B, C and G, and have been improved many times to improve their corrosion resistance and processing properties. Among them, C-276 Hastelloy plate is one of the only several materials that can resist the corrosion of humid chlorine gas, hypochlorite and chlorine dioxide solutions, showing that it has excellent corrosion resistance to most corrosive media.

Please note that although Hastelloy plates have many advantages and a wide range of applications, they still need to be selected and used according to engineering requirements and specifications in specific applications to ensure their safety and effectiveness.
Thickness0.3-200mm
Width40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length2000mm, 2500mm, 3000mm, 5800mm,6000mm,12000mm,etc
StandardASTM,JIS, AISI, GB, DIN, EN
SurfaceBA,2B,NO.1,NO.4,4K,HL,8K
CertificationISO, SGS
TechniqueCold Rolled, Hot Rolled
EdgeMill Edge  Slit Edge UNS No Generic term Composition
Price TermCIF CFR FOB EX-WORK
DIN/ENUNS NoGeneric termComposition
2.4819N10276Hastelloy C-27657Ni-16Mo-16Cr-5Fe-4W-2.5Co-1Mn-0.35V-0.08Si-0.01C
2.461N06455Hastelloy C-465Ni-16Cr-16Mo-0.7Ti-3Fe-2Co-1Mn-0.08Si-0.01C
2.4602N06022Hastelloy C-2256Ni-22Cr-13Mo-3Fe-2.5Co-0.5Mn-0.35V-0.08Si-0.01C
2.4675N06200Hastelloy C-200059Ni-23Cr-16Mo-1.6Cu-0.08Si-0.01C
2.4665N06002Hastelloy X47Ni-22Cr-18Fe-9Mo-1.5Co-0.6W-0.1C-1mn-1Si-0.008B
2.4617N10665Hastelloy B-269Ni-28Mo-0.5Cr-1.8Fe-3W-1.0Co-1.0Mn-0.01C
2.466N10675Hastelloy B-365Ni-28.5Mo-1.5Cr-1.5Fe-3W-3Co-3Mn-0.01C

N06030Hastelloy G-3043Ni-30Cr-15Fe-5.5Mo-2.5W-5Co-2Cu-1.5Mn-0.03C

N06035Hastelloy G-3558Ni-33Cr-8Mo-2Fe-0.6Si-0.3Cu-0.03C

Product Testing

All our products can accept the professional quality inspection of third-party testing institutions, we pay attention to the professionalism of testing institutions and the authenticity of test results

001 (15).jpg

Product Application

Automobile manufacturing
Energy and chemical industry
Machine building
Electric power equipment
Ship parts manufacturing
Rocket plane parts manufacturing
